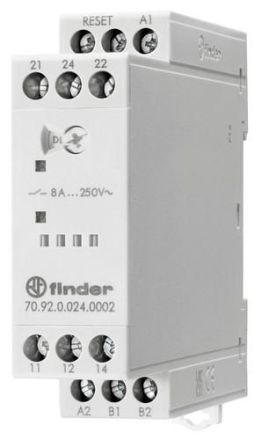

Finder 70.92.0.024.0002 2 changeover contacts 8 A for 24 V AC/DC thermistor relay

In stock
SKU: 887688
€85.86
Into a basketIn the basketGo

Overview

Thermistor relay with error memory 24 V AC/DC, for DIN rail, 2 changeover contacts for 8 A / 250 V AC, contact material AgNi, width 22.5 mm, modular design for industrial use, temperature monitoring with PTC, error memory can be selected via selector switch, reset option, PTC short-circuit monitoring, PTC line break detection, LED status display, positive safety logic - normally open contact opens when the relay detects an error, relay protection class: IP 20

Property Value
Number of contacts as changeover contacts: 2
Design of the electrical connection: Screw connection
Width: 22.5 mm
Height: 101 mm
Depth: 78.8 mm
With removable terminals: no
Number of measuring circuits: 1
Error storage possible: yes
External reset possible: yes
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 24 V
Rated control supply voltage Us at DC: 24 V
Resistance measuring range: 20 to 3000 Ohm

Characteristics

External reset possibleYes
HAB2 changeover contacts 8 A for 24 V AC/DC
ManufacturerFinder
HAN70.92.0.024.0002
GTIN8012823444505
Number of contacts as changeover2
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz24V
Rated control supply voltage Us at AC 60 Hz24V
Rated control supply voltage Us at DC24V
Width22.5 mm
Height101 mm
With removable clampsNo
Depth78.8 mm
Finder 70.92.0.024.0002 2 changeover contacts 8 A for 24 V AC/DC thermistor relay
Finder 70.92.0.024.0002 2 changeover contacts 8 A for 24 V AC/DC thermistor relay
€85.86
Into a basketIn the basketGo
