Finder 72.A1.0.000.0502 m.2 chambers 1 changeover 10A 5m float switch

In stock
SKU: 817701
€47.37
Into a basketIn the basketGo

Overview

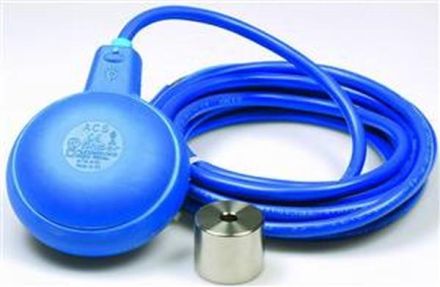

Float switch with 2 chambers, for submersible pumps and slightly contaminated water, 1 changeover contact for 10 A (cos phi 1). Cable material polychloroprene (H07 RN-F), temperature range -15 to +50 °C, counterweight (230 grams) with strain relief included in the accessory pack, housing material polypropylene, tightness of the rubber grommet on the housing 5 bar, switching hysteresis / angle of action +/- 45 °, protection class IP 68 (at a water depth of 10 meters), cables and plastics in accordance with ACS drinking water regulations and AD8 water impermeability

Property Value
Protection class (IP): IP68
Suitable for drinking water: no
Suitable for rainwater: yes
Suitable for cooling water: yes
Suitable for faeces: no
Suitable for household waste water: no
Suitable for condensate: yes
Suitable for glycol: no
Readable: no
With display: no
Adjustable switching difference: no
Vertical installation: yes
Horizontal installation: no
Sensor design: other
Mounting type: hanging above the shaft
Float material: plastic
Float diameter: 107 mm
Connection: other
Max. Contact voltage: 250 V
Max. contact load: 10 A
Max. medium temperature (continuous operation): 50 °C
Max. working pressure: 3.9 bar
Protection class (NEMA): 6P
Explosion-proof: no

Characteristics

Sensor/sensor designOther
HABM.2 chambers 1 changeover contact 10A 5m
ManufacturerFinder
HAN72.A1.0.000.0502
GTIN8012823399232
Explosion-proofNo
With displayNo
Mounting typeHanging above the shaft
IP protection)IP68
Protection class (NEMA)6P
