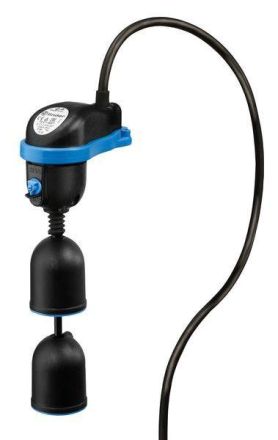

Finder 72.C1.0.000.0201 1 changeover 10A 2m float switch

In stock
SKU: 817707
€47.45
Into a basketIn the basketGo

Overview

Float switch in space-saving design, for submersible pumps and dirty water, 1 changeover contact for 10 A (cos phi 1). Cable material polychloroprene (H07 RN-F), temperature range -15 to +50 °C, adapter and cable ties included as fastening material in the accessory pack, housing material polypropylene, hand switch for automatic (ON/OFF) or manual operation (permanently ON), protection class IP 68, max. operating depth 10 meters

Property Value
Protection class (IP): IP68
Suitable for drinking water: no
Suitable for rainwater: yes
Suitable for cooling water: yes
Suitable for Feces: yes
Suitable for household waste water: yes
Suitable for condensate: yes
Suitable for glycol: no
Readable: no
With display: no
Switching difference adjustable: no
Vertical installation: yes
Installation horizontal: no
Sensor design: cylindrical
Mounting type: hanging above the shaft
Float material: plastic
Float diameter: 69.6 mm
Connection: other
Max. voltage of the contacts: 250 V
Max. Contact load: 10 A
Max. medium temperature (continuous operation): 50 °C
Max. working pressure: 3.9 bar
Protection class (NEMA): 6P
Explosion-proof: no

Characteristics

Sensor/sensor designCylindrical
HAB1 changeover contact 10A 2m
ManufacturerFinder
HAN72.C1.0.000.0201
GTIN8012823434018
Explosion-proofNo
With displayNo
Mounting typeHanging above the shaft
IP protection)IP68
Protection class (NEMA)6P
Finder 72.C1.0.000.0201 1 changeover 10A 2m float switch
