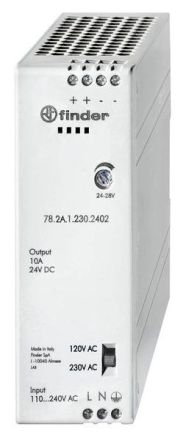

Finder 78.2A.1.230.2402 24V 240W switching power supply

In stock

SKU: 713378

Price on request

€136.85

€0

Overview

DIN rail switching power supply, input 120 or 230 V AC (via selector switch on the front), output 240 W at 24 V DC, output voltage range adjustable from 24-28 V DC, rated output current 10 A (at 230 V AC at the input), maximum peak current 25 A-5 ms, short-circuit protection at the output, width 42.5 mm, for mounting rail 35 mm (EN 60715)

Property	Value
Installation height:	132.3 mm
Performance level according to EN ISO 13849-1:	without
1. Output voltage:	24 to 28 V
Type of supply voltage:	AC
Max. Output current 1:	10 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	230 V
Rated supply voltage at AC 60 Hz:	230 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	Screw connection
Output voltage regulated:	no
Power consumption:	361 VA
Power output:	240 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	42.5 mm
Height:	132.3 mm
Depth:	125 mm
Rated output voltage 1:	24 V
Rated output current 1:	10 A
Width in pitch units:	2.2
Installation width:	42.5 mm
SIL according to IEC 61508:	without
Protection class (NEMA):	1
