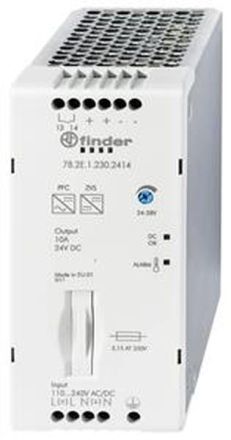

Finder 78.2E.1.230.2414 24V 240W switching power supply

In stock
SKU: 424773
€213.46
Into a basketIn the basketGo

Overview

DIN rail switching power supply, input 110-240 V AC/DC, output 240 W at 24 V DC, output voltage range adjustable from 24-28 V DC. Output contact: positive logic, nominal output current 10 A, maximum peak current 25 A-5 ms, internal thermal protection, short circuit protection at the output. 2-stage power supply with active PFC: After switching off the power supply - reset by removing the supply voltage. The input fuse is replaceable. Width 60 mm, for mounting rail 35 mm (EN 60715).

Property Value
Installation height: 136 mm
Performance level according to EN ISO 13849-1: without
1. Output voltage: 24 to 28 V
Type of supply voltage: AC
Max. Output current 1: 10.8 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 110 to 240 V
Rated supply voltage at DC: 110 to 240 V
Rated supply voltage at AC 60 Hz: 110 to 240 V
Short-circuit proof: yes
Stabilized: yes
Suitable for safety functions: no
Direct mounting possible: no
Design of the electrical connection: screw connection
Output voltage regulated: no
Power consumption: 275 VA
Power output: 240 W
Suitable for series installation: no
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 60 mm
Height: 136 mm
Depth: 129.3 mm
Nominal value of output voltage 1: 24 V
Nominal value of output current 1: 10 A
Width in modular spacing: 3.4
Installation width: 60 mm
SIL according to IEC 61508: without
Protection class (NEMA): 1

Characteristics

Type of voltage of the supply voltageAC
Rated supply voltage for DC110 to 240 V
Short circuit proofYes
Power consumption275 VA
HAB24V 240W
ManufacturerFinder
HAN78.2E.1.230.2414
GTIN8012823402833
Design of the electrical connectionScrew connection
Width60 mm
Width in pitch units3.4
Installation width60 mm
Installation height136 mm
Suitable for series installationNo
Suitable for security functionsNo
Height136 mm
Performance Level according to EN ISO 13849-1Without
SIL according to IEC 61508Without
IP protection)IP20
Protection class (NEMA)1
Depth129.3 mm
Mounting rail possibleYes
