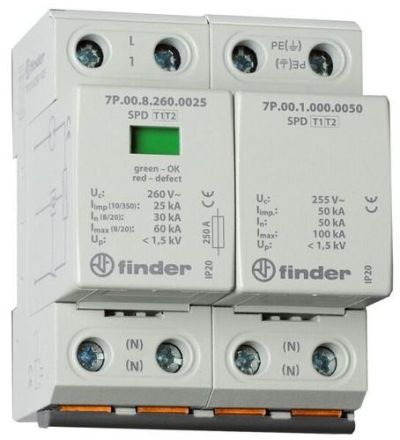

Finder 7P.02.8.260.1025 SPD surge arrester type 1+2 1-phase

Finder 7P.02.8.260.1025 SPD surge arrester type 1+2 1-phase

In stock

SKU: 274543

Price on request

€280.70

€0

Into a basketIn the basketGo

Overview

Surge arrester type 1 and 2, compact device. Varistor and spark gap in series between L - N and spark gap between N - PE. For 1-phase TN-S and TT networks, width 72 mm.

Property	Value
Protection level:	1.5 kV
Nominal discharge current (8/20):	30 kA
Maximum continuous voltage AC:	255 V
Nominal voltage AC:	230 V
Protection level LN:	1.5 kV
Mounting type:	DIN rail TH35
Size:	4 TE
Signaling on the device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	1.5 mm²
Max. Conductor cross-section rigid (single/multi-wire):	1.5 mm²
Protection level N-PE:	1.5 kV
Integrated backup fuse:	no
Protection class (IP):	IP20

Characteristics

Max. conductor cross-section rigid (single/multi-wire)1.5 mm²

Max. conductor cross-section flexible (fine-stranded)1.5 mm²

Protection level1.5 kV

With remote signaling contactYes

Test class type 2Yes

Protection level L-N1.5 kV

Protection level N-PE1.5 kV

Integrated backup fuseNo

Manufacturer

HAN7P.02.8.260.1025

GTIN8012823354149

Size4 HP

Highest continuous voltage AC255V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)30kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical
