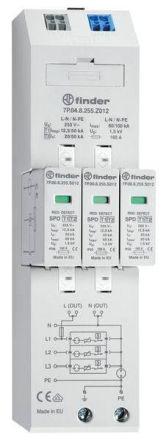

Finder 7P.04.8.255.Z012 Type 1+2 three-phase TN-S TT networks clamping combined arrester

Finder 7P.04.8.255.Z012 Type 1+2 three-phase TN-S TT networks clamping combined arrester

In stock

SKU: 774180

Price on request

€283.96

€0

Overview

Lightning and surge arrester type 1+2 for 40 mm busbar, 12.5 kA per path, 5-conductor system, L1, L2, L3, N, PE, exchangeable modules, optical defect indicator, holding system for the modules, can be used for the discharge of lightning currents up to 12.5 kA per pole, installation in the pre-meter area at the interface of zones LPZ 0 to LPZ 1, without leakage current and follow current, including overcurrent-protected 230 V power supply for RfZ / APZ according to VDE-AR-N 4100

Property	Value
Protection level LN:	1.5 kV
Lightning impulse current (10/350 µs):	12.5 kA
Nominal discharge current (8/20):	20 kA
Maximum continuous voltage AC:	255 V
Nominal voltage AC:	230 V
Protection level:	1.5 kV
Mounting type:	Busbar
Size:	3 TE
With remote signaling contact:	no
Blowing out:	no
Signaling on the device:	optical
Test class type 1:	yes
Network type DC:	no
Protection level N-PE:	1.5 kV
Suitable for outdoor use:	no
Network type TT:	yes
Network type TN-CS:	no
Integrated back-up fuse:	no
Network type TN-S:	yes
Max. conductor cross-section rigid (single/multi-wire):	35 mm²
Max. Conductor cross-section flexible (fine-stranded):	25 mm²
Network type other:	no
Network type TN:	no
Network type TN-C:	no
Network type IT:	no
Number of conductors (without earth):	4
Protection class (IP):	IP20

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²

Max. conductor cross-section flexible (fine-stranded)25 mm²

Lightning surge current (10/350 µs)12.5 kA

Protection level1.5 kV

With remote signaling contactNo

Number of conductors (excluding earth)4

Network form TTYes

Network type TN-SYes

Network form TNNo

Network type TN-CNo

Network type TN-C-SNo

Protection level L-N1.5 kV

Network type DCNo

Protection level N-PE1.5 kV

Integrated backup fuseNo

Network type ITNo

HABType 1+2 three-phase TN-S TT networks voltage

Manufacturer

HAN7P.04.8.255.Z012

GTIN8012823433592

Size3 HP

Suitable for outdoor useNo

Highest continuous voltage AC255V

Mounting typeBusbar

Nominal discharge current (8/20)20kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical
