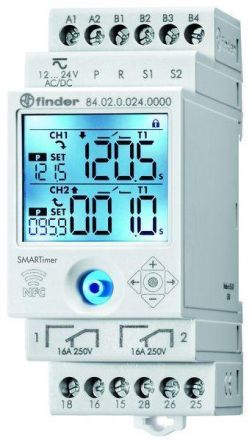

Multifunction time relay SMARTimer for DIN rail mounting, series installation device, digital, 2 independent changeover contacts for 16 A, 2 independent start inputs (S1/S2), a common reset input (selectable per channel or both channels), contact material AgNi, max. inrush current: 30 A, 25 time functions are programmable: function codes: OFF, ON, AI, DI, GI, LI, PI, SW, SP, AE, BE, DE, EE, FE, EEa, EEb, WD, GE, LE, PE, IT, SS, PS and SHp. Time ranges: 0.1 s to 9999 hrs., supply voltage 12 to 24 V AC/DC (50/60 Hz). 2 programming modes: in Smart mode with a smartphone via NFC communication or Classic mode with the joystick. Width 35 mm, relay protection class: IP20.
| Property | Value |
| Number of outputs, delayed, changeover: | 2 |
| Design of the electrical connection: | Screw connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | yes |
| Type of voltage for actuation: | AC/DC |
| Time range: | 0.1 to 35996400 s |
| Rated control supply voltage Us at AC 50 Hz: | 12 to 24 V |
| Rated control supply voltage Us at AC 60 Hz: | 12 to 24 V |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Width: | 35 mm |
| Depth: | 60.8 mm |
| Height: | 88.8 mm |
| With Plug-in base: | no |
| Remote control possible: | yes |
| Suitable as remote control: | no |
| On-delay function: | yes |
| Off-delay function: | yes |
| On-flicker function: | yes |
| Off-flicker function: | yes |
| Star/delta function: | no |
| Pulse-forming function: | yes |
| Function flashing starting with pause, fixed time: | yes |
| Function flashing starting with pulse, fixed time: | yes |
| Function clocking starting with pause, variable: | yes |
| Function clocking starting with pulse, variable: | yes |
| With semiconductor output: | no |
| Rated current: | 16 A |
| Suitable for DIN rail mounting: | yes |
| Suitable for front mounting: | no |
