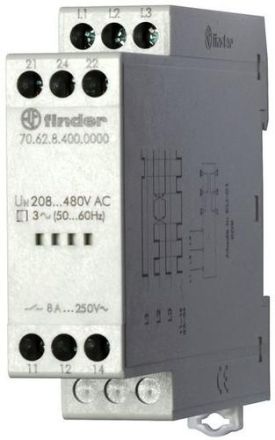

Finder 70.62.8.400.0000 Network monitoring

In stock

SKU: 274378

Price on request

€59.39

€0

Overview

3-phase mains monitoring for series installation 400 V AC 50/60 Hz, for DIN rail, 2 changeover contacts for 8 A (AC1), contact material AgNi, contact voltage 250 V AC, max. contact voltage 400 V AC, contact material: AgCdO, industrial design: 22.5 mm wide, phase sequence and phase failure monitoring even with reverse voltage, supply voltage operating range 170 - 520 V, LED status display

Property	Value
Design of the electrical connection:	Screw connection
Type of voltage for actuation:	AC
Number of contacts as changeover contacts:	2
Width:	22.5 mm
Height:	86.3 mm
Depth:	100.3 mm
Overvoltage detection function:	no
Rated control supply voltage Us at AC 50 Hz:	170 to 520 V
With removable terminals:	no
Phase sequence monitoring function:	yes
Phase failure detection function:	yes
Undervoltage detection function:	no
Asymmetry detection function:	no
Voltage measuring range:	208 to 480 V
Rated control supply voltage Us at AC 60 Hz:	170 to 520 V
