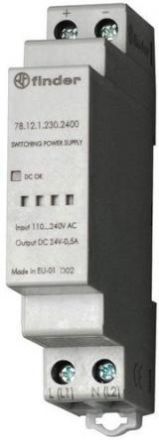

Finder 78.12.1.230.2400 switching power supply 24V 12W

In stock

SKU: 274529

Price on request

€41.63

€0

Overview

DIN rail switching power supply, input 110-240 V AC or 220 V DC, with AC voltage the power supply switches at zero crossing, output 12 W at 24 V DC, rated output current 0.5 A, internal thermal protection, short-circuit protection at the output, width 17.5 mm, for mounting rail 35 mm (EN 60715).

Property	Value
Installation height:	88.8 mm
Performance level according to EN ISO 13849-1:	without
1. Output voltage:	24 V
Type of supply voltage:	AC
Max. Output current 1:	0.63 A
Output voltage adjustable:	no
Rated supply voltage at AC 50 Hz:	110 to 240 V
Rated supply voltage at DC:	220 V
Rated supply voltage at AC 60 Hz:	110 to 240 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	no
Power consumption:	28.2 VA
Power output:	12 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	17.5 mm
Height:	88.8 mm
Depth:	60.8 mm
Nominal value of output voltage 1:	24 V
Nominal value of output current 1:	0.5 A
Width in modular spacing:	1
Installation width:	17.5 mm
SIL according to IEC 61508:	without
Protection class (NEMA):	1
