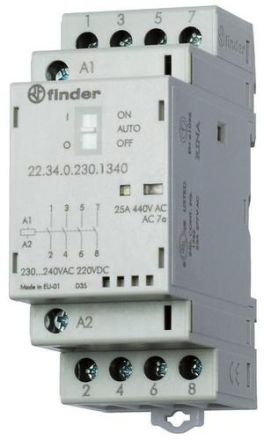

Installation contactor for 35 mm rail, 4 NO contacts for 25 A / 250 V AC, contact material AgNi, max. switching capacity at 230 V AC: AC1 6250 VA, AC15 1800 VA, 3-phase motor load, AC3 (400-440 V AC) 4 kW, energy-saving lamps 100 W, LED (230 V AC) 100 W, LV halogen lamps or LED with electronic ballast 100 W, LV halogen lamps or LED with conventional ballast 300 W. Coil: 230 V AC/DC, width 35 mm, with on-auto-off switch, LED and mechanical switch position indicator, relay protection class: IP 20
| Property | Value |
| Type of operating voltage: | AC |
| Degree of protection (IP): | IP20 |
| Number of module dimensions: | 2 |
| Max. incandescent lamp load: | 800 W |
| Rated operating current: | 25 A |
| Rated operating voltage: | 250 to 440 V |
| Max. fluorescent lamp load (parallel compensated): | 200 VA |
| Max. Fluorescent lamp load (duo circuit): | 300 VA |
| Max. Fluorescent lamp load: | 300 VA |
| Additional equipment possible: | yes |
| Slider for manual switching: | yes |
| Type of actuating voltage: | AC/DC |
| Installation depth: | 60.8 mm |
| Rated actuating voltage: | 230 V |
| Number of contacts as normally open: | 4 |
