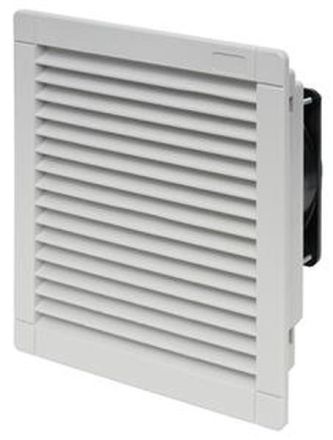

Finder 7F.70.8.230.3100 EMC filter fan 100 m3/h 22W

In stock

SKU: 271478

Price on request

€178.42

€0

Overview

EMC filter fan for control cabinet, air flow 100 m3/h, operating voltage 230 V, operating current 140 mA, rated power 22 W, mounting cutout 177 x 177, protection class IP 54, ambient temperature -10...+70 degrees C.

Property	Value
Rated power:	22 W
Height:	204 mm
Width:	204 mm
Depth:	97.5 mm
Voltage type:	AC
With filter:	yes
Operating voltage at AC 50 Hz:	230 V
Operating voltage at AC 60 Hz:	230 V
Volume flow, free blowing:	100 m³/h
Suitable for 482.6 mm (19 inch) installation:	no
Circulation fan:	yes
Wall installation:	yes
Designed as a slide-in fan:	no
Number of fans:	1
Roof fan:	no
EMC version:	yes
Protection class (IP):	IP54
Mounting type:	screw fastening
Color:	gray
RAL number:	7035
With protective cover:	yes
Protection class (NEMA):	3
