Finder 88.92.0.240.0000 clock pause beginning

In stock

SKU: 272345

Price on request

€76.18

€0

Overview

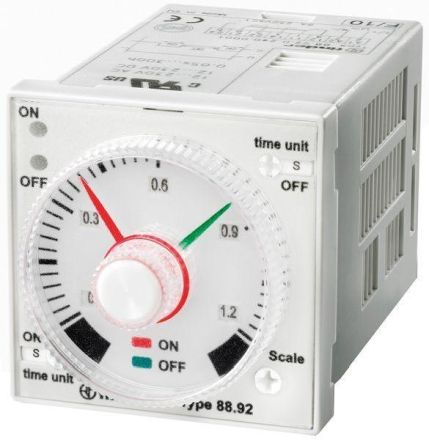

Time relay for front mounting. Function: asymmetrical clock generator - pause starting. Time ranges selectable from 1.2 seconds to 300 hours. 2 changeover contacts for 8 A. Contact material AgNi. Recovery time 200 ms. Maximum switching voltage 400 V AC. Maximum switching capacity AC1 2000 VA. Maximum switching capacity AC15 (230 V AC) 400 VA. 1-phase motor load, AC3 operation (230 V AC) 0.3 kW. Can be plugged into 8-pin sockets of the 90 series. Supply voltage: 12- 240 V AC/DC (50/60 Hz).

Property	Value
Number of outputs, delayed, changeover:	2
Design of the electrical connection:	Plug connection
Can be plugged into contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	1.2 to 1080000 s
Rated control supply voltage Us at AC 50 Hz:	12 to 240 V
Rated control supply voltage Us at AC 60 Hz:	12 to 240 V
Rated control supply voltage Us at DC:	12 to 240 V
Width:	57.6 mm
Depth:	98.7 mm
Height:	48.3 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	no
Off-delayed function:	no
On-flicker function:	no
Off-flicker function:	no
Function Star/delta:	no
Pulse-forming function:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	yes
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	8 A
Suitable for DIN rail mounting:	no
Suitable for front mounting:	yes
