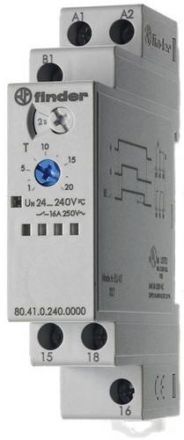

Finder 80.41.0.240.0000 time relay release delay.

In stock

SKU: 272363

Price on request

€35.02

€0

Overview

Time relay, off-delay, for DIN rail, 17.5 mm wide, 1 changeover contact for 16 A / 250 V AC, contact material AgNi, time range: 0.1 s - 24 h, supply voltage: 24..240 V AC (50/60 Hz) / DC, relay protection class: IP 20

Property	Value
Number of outputs, delayed, changeover contact:	1
Design of the electrical connection:	screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC/DC
Time range:	0.1 to 86400 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	17.5 mm
Depth:	60.8 mm
Height:	88.8 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	no
Off-delay function:	yes
Passing switch function:	no
Function with flickering when switched off:	no
Function star/delta:	no
Function pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	16 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
