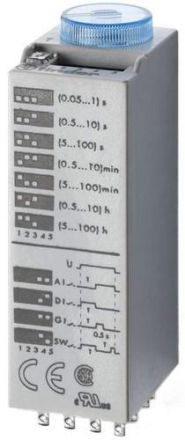

Finder 85.04.0.125.0000 time relay pluggable

In stock

SKU: 272379

Price on request

€37.87

€0

Overview

Plug-in miniature MF time relay 4 changeover contacts for 7 A / 250 V AC, for socket 94.04 Contact material AgNi, Functions: Response delay, switch-on contact, pulse relay (flasher) symmetrical, pulse starting, pulse generator (0.5 s) Time range: 0.05 s - 100 h, Supply voltages: 110-125 V DC/AC (50/60 Hz) Relay protection class: IP 20

Property	Value
Number of outputs, delayed, changeover contact:	4
Design of the electrical connection:	Plug connection
Can be plugged onto Contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC/DC
Time range:	0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	125 V
Rated control supply voltage Us at AC 60 Hz:	125 V
Rated control supply voltage Us at DC:	125 V
Width:	20.6 mm
Depth:	63.1 mm
Height:	27.7 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	yes
Off-delay function:	no
Function with flickering when switched on:	yes
Function with flickering when switched off:	no
Function with star/delta:	no
Function with pulse shaping:	yes
Function with flashing starting with pause, fixed time:	no
Function with flashing starting with pulse, fixed time:	yes
Function with clocking starting with pause, variable:	no
Function clocked starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	7 A
Suitable for DIN rail mounting:	no
Suitable for front mounting:	no
