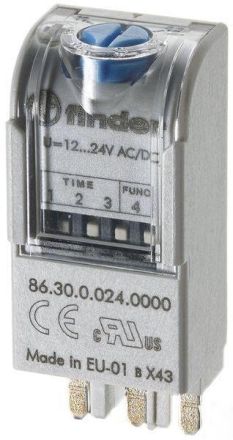

Finder 86.30.0.024.0000 Time module

In stock

SKU: 271509

Price on request

€21.26

€0

Overview

Multifunctional time module, response delay and switch-on pulse for socket 90.02/.03, 92.03, 94.02/.03/.04, 95.03/.05 Time range: 0.05 s - 100 h, supply voltage: 12-24 V DC/AC (50/60 Hz) Relay protection class: IP 20 can be used in sockets: 90.02/03, 94.02/03/04, 95.03/05, 95.55, 96.02/04,97.01/02/51/52

Property	Value
Design of the electrical connection:	Plug connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	12 to 24 V
Rated control supply voltage Us at AC 60 Hz:	12 to 24 V
Rated control supply voltage Us at DC:	12 to 24 V
Width:	15.5 mm
Depth:	11.3 mm
Height:	31 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Function response delay:	yes
Function off-delayed:	no
Function with a passing switch on:	yes
Function with a passing switch off:	no
Function star/delta:	no
Function pulse-forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocked starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	16 A
Suitable for DIN rail mounting:	no
Suitable for front mounting:	no
