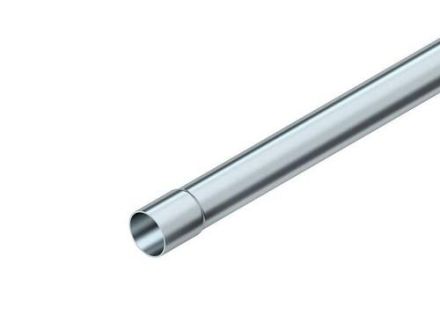

Socket pipe-fm according to DIN EN 61386-1 / DIN EN 61386-21, with socket molded on one side, can be used for extreme mechanical requirements and fixed connections due to very high compressive strength, very high corrosion resistance. Dimensions (approx. dimensions) Pipe Ø outside: 63 mm Inner Ø Di: 60 mm Material thickness t: 1.5 mm Length started. Sleeve inside: 46 mm Delivery length L total: 3000 mm Usable cross-section: 2826 mm² Classification: 5557 for very heavy mechanical stress Surface: brushed Material: stainless steel, material no. 1.4571
| Property | Value |
| For nominal pipe diameter: | 63 mm |
| Material: | Metal |
| Halogen-free: | yes |
| Design: | Plug-in |
| Surface: | untreated |
| Surface polished: | no |
| Surface brushed: | yes |
| Two-part: | no |
| With inspection opening and lid: | no |
| Quality of surface coating: | uncoated |
| With external thread: | no |
| With internal thread: | no |
| Dividable: | no |
| Eccentric: | no |
