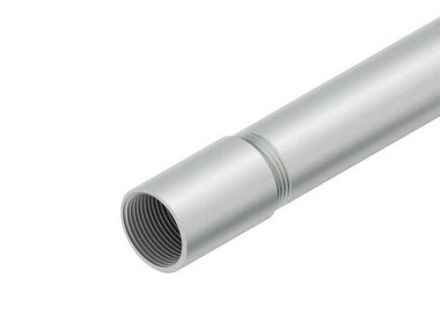

Threaded pipe according to DIN EN 61386-1 / DIN EN 61386-21, with socket screwed on one side and connecting thread, can be used for extreme mechanical requirements and fixed connections due to heavy pressure resistance and high temperature resistance. Dimensions (approx. dimensions) Pipe Ø outside: 20 mm Inner Ø Di: 17 mm Material thickness t: 1.5 mm Connecting thread: M 20x1.5 mm Total delivery length L: 3017 mm Usable cross-section: 227 mm² Classification: 4456 for heavy mechanical stress Surface: pressed / milled Material: aluminum alloy, material no. 3.3206 EN AW 6060 T5
