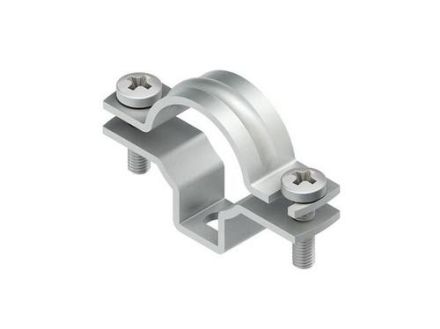

Fintech IPA 63 AL AL-BL DN63 (452863) Aluminium screw clamp

In stock
SKU: 796805
€2.25
Into a basketIn the basketGo

Overview

Pipe and cable spacer clamp, with long fastening hole, for cables and electrical installation pipes in accordance with DIN EN 61386-21, for fastening IEC plug-in pipes and IEC threaded pipes to a flat wall / ceiling and for mounting on NHP... mounting rail using a bevel nut with NPB 06 screw. Please note: For safety reasons, it is recommended to carry out overhead installations with IPA... screw pipe clamps. for IEC plug-in pipe: IESR... AL for IEC threaded pipe: IEGR... AL for socket pipe-fm: FM-MR... AL Dimensions (approx. dimensions) W x L: 18 x 100 mm Long fastening hole: 6.4 x 10 mm for clamping range Ø: 55 - 63 mm for IEC pipe Ø: 63 mm Surface: milled Material: aluminum alloy, material no. 3.3535 Material screws: stainless steel, material no. 1.4301 / 1.4303

Property Value
Material: Aluminium
Diameter: 55 to 63 mm
Surface: other
Nominal diameter: 63 mm
Halogen-free: yes
Fastening type: Screw hole
Design: double-lobed
Number of cables/pipes: 1
Suitable for fire protection areas: no
UV-resistant: yes
Material quality: other
Distance from wall: yes
Plastic-coated: no

Characteristics

HABAL-BL DN63 (452863)
Minimal order20 pcs
ManufacturerFintech
HANIPA 63 AL
GTIN4046933001277
VersionTwo-lobed
Mounting typeScrew hole
Diameter55 to 63 mm
Halogen freeYes
Nominal diameter63 mm
SurfaceOther
UV-resistantYes
MaterialAluminum
Material qualityOther
