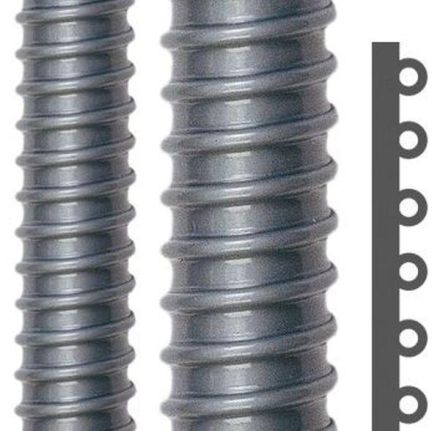

Flexa 10200101029 AIRflex-K grey AD36 plastic protection hose

In stock
SKU: 911783
€22.80
Into a basketIn the basketGo

Overview

All-plastic protective hose AIRflex-KL, rings, IP 67 spiral-wound all-plastic hose with integrated hard plastic helix, smooth inside Material: PVC with hard plastic helix, color: black Temperature range: -5°C ... + 60°C Properties: very flexible / air and liquid-tight / largely acid and oil resistant / silicone and cadmium free / easy pulling in of cables Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / automation / electrical systems

Property Value
Nominal size in inches: 1 inch
Approval according to CSA: yes
Approval according to DIN EN 61386-23: no
Nominal diameter: 36.0 mm
Inner diameter: 29.0 mm
Outer diameter: 36.0 mm
Helix material: Hard plastic helix
Operating temperature: -25 to +70 °C
Bending radius, static: 50 mm
UV-resistant: no
Halogen-free: no
Smooth inside: yes
Smooth outside: no
Flexibility: very flexible
Color: grey
Approval according to UR: yes
Approval according to N: no
Material: Polyvinyl chloride (PVC)
Protection class (IP): IP68
Sheathing material: without sheathing

Characteristics

Inner diameter29.0 mm
Bending radius, static50 mm
HABAIRflex-K grey AD36
Minimal order25 meters
ManufacturerFlexa
HAN10200101029
GTIN4025113104403
Outer diameter36.0 mm
Operating temperature-25 to +70 °C
ColorGray
Halogen freeNo
Nominal diameter36.0 mm
Nominal size in inchesInch
IP protection)IP68
UV-resistantNo
MaterialPolyvinyl chloride (PVC)
Flexa 10200101029 AIRflex-K grey AD36 plastic protection hose
Flexa 10200101029 AIRflex-K grey AD36 plastic protection hose
€22.80
Into a basketIn the basketGo
