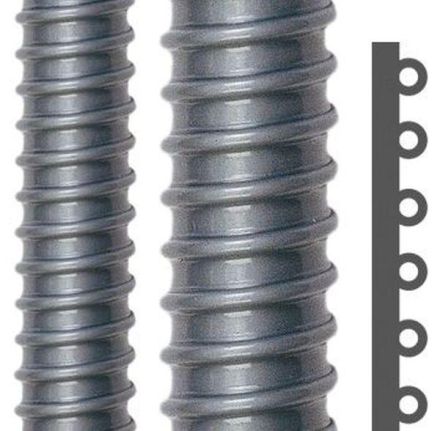

Flexa 10201101048 AIRflex-K, grey AD56 RG10m plastic protection hose

In stock
SKU: 911773
€307.35
Into a basketIn the basketGo

Overview

All-plastic protective hose AIRflex-K, 10 meter pack, IP 68 spiral-wound all-plastic hose with integrated hard plastic spiral, smooth inside Material: PVC with hard plastic spiral, color: gray Temperature range: -25°C ... + 70°C ^ +100°C Approvals: UL 1696 UR-File-no E86359 / CSA 22.2 File 227.3-05 Properties: very flexible / air and liquid tight / largely acid and oil resistant / silicone and cadmium free / easy pulling in of cables Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / automation / electrical systems

Property Value
Nominal size in inches: 1 1/2 inch
Approval according to CSA: yes
Approval according to DIN EN 61386-23: no
Nominal diameter: 56.0 mm
Inner diameter: 48.0 mm
Outer diameter: 56.0 mm
Material of the spiral: Hard plastic spiral
Operating temperature: -25 to +70 °C
Bending radius, static: 100 mm
UV-resistant: no
Halogen-free: no
Smooth inside: yes
Smooth outside: no
Flexibility: very flexible
Color: grey
Approval according to UR: yes
Approval according to N: no
Material: Polyvinyl chloride (PVC)
Protection class (IP): IP68
Sheathing material: without sheathing

Characteristics

Inner diameter48.0 mm
Bending radius, static100 mm
HABAIRflex-K, grey AD56 RG10m
ManufacturerFlexa
HAN10201101048
GTIN4025113104854
Outer diameter56.0 mm
Operating temperature-25 to +70 °C
ColorGray
Halogen freeNo
Nominal diameter56.0 mm
Nominal size in inches1 1/2 inch
IP protection)IP68
UV-resistantNo
MaterialPolyvinyl chloride (PVC)
