Flexa 10220101038 AIRflex-GRS AD45 38x45mm grey plastic hose

In stock
SKU: 912903
€36.35
Into a basketIn the basketGo

Overview

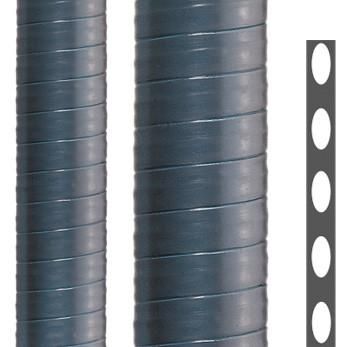

All-plastic protective hose AIRflex-GRS, rings, IP 68 All-plastic hose with integrated hard plastic spiral, smooth on the outside and inside Material: PVC with hard plastic spiral, color: gray Temperature range: -25°C ... + 70°C ^ +100°C Approvals: UL 1696 UR-File-no E86359 / CSA 22.2 File 227.3-05 Properties: flexible / largely acid and oil resistant / silicone and cadmium free / easy pulling in of cables / easy cleaning of the hose Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / automation / electrical systems

Property Value
Nominal size in inches: 1 1/4 inch
Approval according to CSA: yes
Approval according to DIN EN 61386-23: no
Nominal diameter: 45.0 mm
Inner diameter: 38.0 mm
Outer diameter: 45.0 mm
Material of the spiral: Hard plastic spiral
Operating temperature: -25 to +70 °C
Bending radius, static: 190 mm
UV-resistant: no
Halogen-free: no
Smooth inside: yes
Smooth outside: yes
Flexibility: flexible
Color: grey
Approval according to UR: yes
Approval according to N: no
Material: Polyvinyl chloride (PVC)
Protection class (IP): IP68
Sheathing material: without sheathing

Characteristics

Inner diameter38.0 mm
Bending radius, static190 mm
HABAIRflex-GRS AD45 38x45mm grey
Minimal order25 meters
ManufacturerFlexa
HAN10220101038
GTIN4025113105196
Outer diameter45.0 mm
Operating temperature-25 to +70 °C
ColorGray
Halogen freeNo
Nominal diameter45.0 mm
Nominal size in inches1 1/4 inch
IP protection)IP68
UV-resistantNo
MaterialPolyvinyl chloride (PVC)
Flexa 10220101038 AIRflex-GRS AD45 38x45mm grey plastic hose
