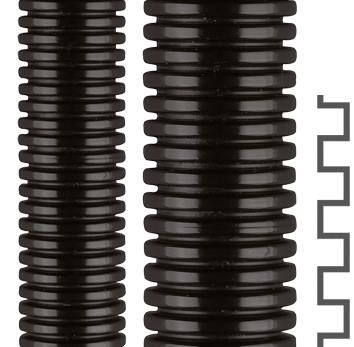

Flexa 10231002010 ROHRflex PP AD13 10.0x13.0mm black solid plastic corrugated hose

In stock
SKU: 912172
€1.48
Into a basketIn the basketGo

Overview

All-plastic corrugated hose ROHRflex PP, rings, HB (UL 94), IP 68/IP 69K For economical applications, corrugated inside and out, narrow profile Material: plastic (PP), color: black Temperature range: -40°C...+120°C ^ +150°C Approvals: VDE-tested EN IEC 61386-23 / Lloyds Register of Shipping Properties: air- and liquid-tight / resistant to aqueous solutions (salts, acids, alkalis) / largely solvent-resistant / silicone and cadmium-free / UV-resistant / flame-retardant Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / electrical systems

Property Value
Lengthwise slit: no
Nominal size in inches: 5/16 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: no
Nominal diameter: 13.0 mm
Inner diameter: 9.8 mm
Outer diameter: 12.9 mm
Operating temperature: -40 to +120 °C
Fire protection according to UL94: other
Bending radius, static: 20 mm
UV-resistant: yes
Oil-resistant: no
Color: black
Sheathing material: without sheathing
Flame-spreading: no
Halogen-free: no
Approval according to UR: no
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: no
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: no
Approval according to UTAC: no
Approval according to DIN 5510: no
Material: Polypropylene (PP)
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 60 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter9.8 mm
Bending radius, static20 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PP AD13 10.0x13.0mm black
Minimal order50 meters
ManufacturerFlexa
HAN10231002010
GTIN4025113176363
Outer diameter12.9 mm
Operating temperature-40 to +120 °C
ColorBlack
Halogen freeNo
Nominal diameter13.0 mm
Nominal size in inches5/16 inch
IP protection)IP68
UV-resistantYes
MaterialPolypropylene (PP)
