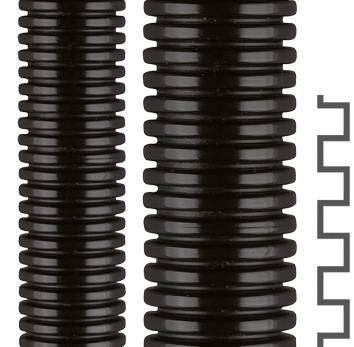

Flexa 10231002014 ROHRflex PP AD18,5 14,3x18,2mm black solid plastic corrugated hose

In stock
SKU: 912170
€3.25
Into a basketIn the basketGo

Overview

All-plastic corrugated hose ROHRflex PP, rings, HB (UL 94), IP 68/IP 69K For economical applications, corrugated inside and out, narrow profile Material: plastic (PP), color: black Temperature range: -40°C...+120°C ^ +150°C Approvals: VDE-tested EN IEC 61386-23 / Lloyds Register of Shipping Properties: air- and liquid-tight / resistant to aqueous solutions (salts, acids, alkalis) / largely solvent-resistant / silicone and cadmium-free / UV-resistant / flame-retardant Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / electrical systems

Property Value
Lengthwise slit: no
Nominal size in inches: other
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: no
Nominal diameter: 18.5 mm
Inner diameter: 14.3 mm
Outer diameter: 18.2 mm
Compressive strength: 125 N
Operating temperature: -40 to +120 °C
Fire protection according to UL94: other
Bending radius, static: 35 mm
UV-resistant: yes
Oil-resistant: no
Color: black
Sheathing material: without sheathing
Flame-spreading: no
Tensile strength: 100 N
Halogen-free: no
Approval according to UR: no
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: no
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: no
Approval according to UTAC: no
Approval according to DIN 5510: no
Material: Polypropylene (PP)
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 105 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter14.3 mm
Bending radius, static35 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PP AD18,5 14,3x18,2mm black
Minimal order50 meters
ManufacturerFlexa
HAN10231002014
GTIN4025113183828
Outer diameter18.2 mm
Operating temperature-40 to +120 °C
ColorBlack
Halogen freeNo
Nominal diameter18.5 mm
Nominal size in inchesOther
IP protection)IP68
UV-resistantYes
MaterialPolypropylene (PP)
Flexa 10231002014 ROHRflex PP AD18,5 14,3x18,2mm black solid plastic corrugated hose
Flexa 10231002014 ROHRflex PP AD18,5 14,3x18,2mm black solid plastic corrugated hose
€3.25
