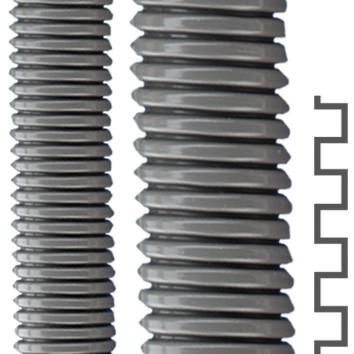

Flexa 10232201048 ROHRflex PA6S AD54,5 48,0x54,5mm grey solid plastic corrugated hose

In stock
SKU: 914296
€23.46
Into a basketIn the basketGo

Overview

All-plastic corrugated hose ROHRflex PA 6-S, V2 (UL 94), IP 68/IP 69K for simple applications, corrugated inside and outside, narrow profile Material: plastic (PA), color: gray (also available in black) Temperature range: -40°C...+120°C ^ ... 150°C Approvals: tested EN/IEC 61386-23 / UL 1696 - CSA 22.2UR-File-no E86359 / DIN 5510 - Part 2 / NFF 16-101/102 (I4/F2) / Lloyds Register of Shipping / DNV / Gost Properties: air and liquid tight / oil resistant up to +80°C / petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / flame retardant Area of application: mechanical engineering / plant engineering / Vehicle construction / rail vehicles / shipbuilding / automation / electrical systems

Property Value
Lengthwise slotted: no
Nominal size in inches: 1 1/2 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: yes
Nominal diameter: 54.5 mm
Inner diameter: 48.0 mm
Outer diameter: 54.5 mm
Compressive strength: 750 N
Operating temperature: -40 to 120 °C
Fire protection according to UL94: V2
Bending radius, static: 100 mm
UV-resistant: yes
Oil-resistant: yes
Color: gray
Sheathing material: without sheathing
Flame-spreading: no
Tensile strength: 500 N
Halogen-free: yes
Approval according to UR: yes
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: yes
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: yes
Approval according to UTAC: no
Approval according to DIN 5510: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 190 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter48.0 mm
Bending radius, static100 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA6S AD54,5 48,0x54,5mm grey
Minimal order25 meters
ManufacturerFlexa
HAN10232201048
GTIN4025113105295
Outer diameter54.5 mm
Operating temperature-40 to 120 °C
ColorGray
Halogen freeYes
Nominal diameter54.5 mm
Nominal size in inches1 1/2 inch
IP protection)IP68
UV-resistantYes
Flexa 10232201048 ROHRflex PA6S AD54,5 48,0x54,5mm grey solid plastic corrugated hose
Flexa 10232201048 ROHRflex PA6S AD54,5 48,0x54,5mm grey solid plastic corrugated hose
