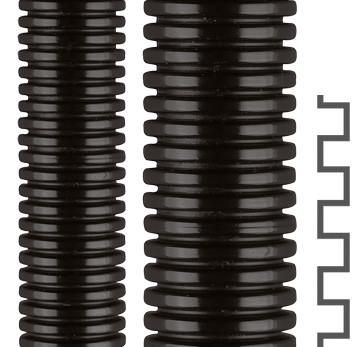

Flexa 10233209116 ROHRflex PA6S AD21,2 16,5x21,2mm 10m black solid plastic corrugated hose

In stock
SKU: 914429
€3.68
Into a basketIn the basketGo

Overview

Solid plastic corrugated hose ROHRflex PA 6-S, V2 (UL 94), IP 68/IP 69K, 10 meter pack for simple applications, corrugated inside and outside, narrow profile Material: plastic (PA), color: black Temperature range: -40°C...+120°C ^ ... 150°C Approvals: tested EN/IEC 61386-23 / UL 1696- CSA 22.2UR-File-no E86359 / DIN 5510 - Part 2 / NFF 16-101/102 (I4/F2) / Lloyds Register of Shipping / DNV / Gost Properties: air and liquid tight / oil resistant up to +80°C / petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / flame retardant / UV resistant Area of application: mechanical engineering / plant engineering / Vehicle construction / Rail vehicles / Shipbuilding / Automation / Electrical systems

Property Value
Lengthwise slotted: no
Nominal size in inches: 1/2 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: no
Nominal diameter: 21.2 mm
Inner diameter: 16.5 mm
Outer diameter: 21.2 mm
Compressive strength: 320 N
Operating temperature: -40 to +120 °C
Fire protection according to UL94: V2
Bending radius, static: 45 mm
UV-resistant: yes
Oil-resistant: yes
Color: black
Sheathing material: without sheathing
Flame-spreading: no
Tensile strength: 100 N
Halogen-free: yes
Approval according to UR: yes
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: yes
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: yes
Approval according to UTAC: no
Approval according to DIN 5510: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 75 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter16.5 mm
Bending radius, static45 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA6S AD21,2 16,5x21,2mm 10m black
Minimal order10 meters
ManufacturerFlexa
HAN10233209116
GTIN4025113201577
Outer diameter21.2 mm
Operating temperature-40 to +120 °C
ColorBlack
Halogen freeYes
Nominal diameter21.2 mm
Nominal size in inches1/2 inch
IP protection)IP68
UV-resistantYes
