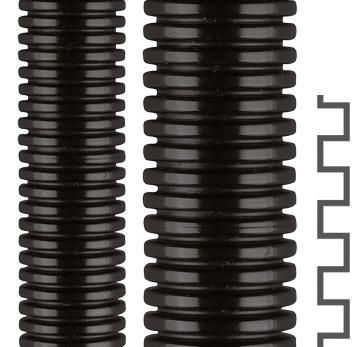

Flexa 10233209129 ROHRflex PA6S AD34,5 29x34,5mm 10m black solid plastic corrugated hose

In stock
SKU: 914431
€7.23
Into a basketIn the basketGo

Overview

Solid plastic corrugated hose ROHRflex PA 6-S, V2 (UL 94), IP 68/IP 69K, 10 meter pack for simple applications, corrugated inside and outside, narrow profile Material: plastic (PA), color: black Temperature range: -40°C...+120°C ^ ... 150°C Approvals: tested EN/IEC 61386-23 / UL 1696- CSA 22.2UR-File-no E86359 / DIN 5510 - Part 2 / NFF 16-101/102 (I4/F2) / Lloyds Register of Shipping / DNV / Gost Properties: air and liquid tight / oil resistant up to +80°C / petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / flame retardant / UV resistant Area of application: mechanical engineering / plant engineering / Vehicle construction / Rail vehicles / Shipbuilding / Automation / Electrical systems

Property Value
Lengthwise slotted: no
Nominal size in inches: 1 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: no
Nominal diameter: 34.5 mm
Inner diameter: 29.0 mm
Outer diameter: 34.5 mm
Compressive strength: 750 N
Operating temperature: -40 to +120 °C
Fire protection according to UL94: V2
Bending radius, static: 65 mm
UV-resistant: yes
Oil-resistant: yes
Color: black
Sheathing material: without sheathing
Flame-spreading: no
Tensile strength: 250 N
Halogen-free: yes
Approval according to UR: yes
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: yes
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: yes
Approval according to UTAC: no
Approval according to DIN 5510: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 120 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter29.0 mm
Bending radius, static65 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA6S AD34,5 29x34,5mm 10m black
Minimal order10 meters
ManufacturerFlexa
HAN10233209129
GTIN4025113284488
Outer diameter34.5 mm
Operating temperature-40 to +120 °C
ColorBlack
Halogen freeYes
Nominal diameter34.5 mm
Nominal size in inchesInch
IP protection)IP68
UV-resistantYes
