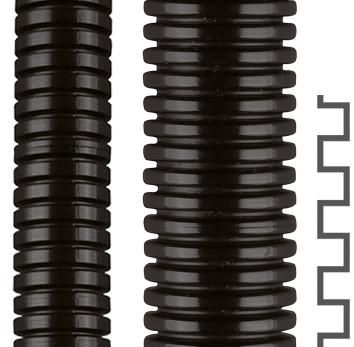

Flexa 10236202016 ROHRflex PA12 AD21,2 16,5x21,2mm black solid plastic corrugated hose

In stock
SKU: 914313
€8.33
Into a basketIn the basketGo

Overview

Solid plastic corrugated hose ROHRflex PA 12, V2 (UL 94), IP 68/IP 69K for very flexible applications, outdoor area, corrugated inside and outside, narrow profile Material: plastic (PA), color: black Temperature range: -50°C...+100°C ^ ... 130°C Approvals: tested EN/IEC 61386-23 /EN 45545-2 (HL 2) / UNI CEI 11170 / Lloyds Register of Shipping / DNV / Gost Properties: high alternating bending strength / good insulation properties / air and liquid tight / oil and petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / self-extinguishing / flame retardant / UV-resistant Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles (especially outdoors) / shipbuilding / automation / electrical systems

Property Value
Lengthwise slotted: no
Nominal size in inches: 1/2 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: yes
Nominal diameter: 21.2 mm
Inner diameter: 16.5 mm
Outer diameter: 21.2 mm
Compressive strength: 125 N
Operating temperature: -50 to +100 °C
Fire protection according to UL94: V2
Bending radius, static: 35 mm
UV-resistant: yes
Oil-resistant: yes
Color: black
Coating material: without coating
Flame-propagating: no
Tensile strength: 100 N
Halogen-free: yes
Approval according to UR: yes
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: yes
Approval according to LUL/British Standard: yes
Lloyds Register TA approval: yes
UTAC approval: no
DIN 5510 approval: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 75 mm
With pull wire: no
Highly slippery Inner layer: no

Characteristics

Inner diameter16.5 mm
Bending radius, static35 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA12 AD21,2 16,5x21,2mm black
Minimal order50 meters
ManufacturerFlexa
HAN10236202016
GTIN4025113105899
Outer diameter21.2 mm
Operating temperature-50 to +100 °C
ColorBlack
Halogen freeYes
Nominal diameter21.2 mm
Nominal size in inches1/2 inch
IP protection)IP68
UV-resistantYes
