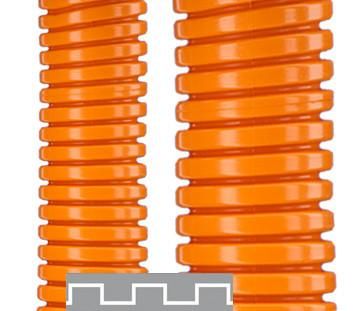

Flexa 10236209016 ROHRflex PA12 AD21,2 16,5x21,2mm orange solid plastic corrugated hose

In stock
SKU: 914320
€6.73
Into a basketIn the basketGo

Overview

Solid plastic corrugated hose ROHRflex PA 12-S, V2 (UL 94), rings, IP 68/IP 69K, for very flexible applications, outdoor area, corrugated inside and outside, narrow profile Material: plastic (PA), color: orange (also available in gray and black) Temperature range: -50°C...+100°C ^ ... 130°C Approvals: tested EN/IEC 61386-23 / UL 1696 - CSA 22.2 UR-File-no E86359 Properties: high alternating bending strength / air and liquid tight / oil and petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / self-extinguishing / flame retardant / UV-resistant Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / automation / electrical systems

Property Value
Lengthwise slotted: no
Nominal size in inches: 1/2 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: yes
Nominal diameter: 21.2 mm
Inner diameter: 16.5 mm
Outer diameter: 21.2 mm
Compressive strength: 125 N
Operating temperature: -50 to +100 °C
Fire protection according to UL94: V2
Bending radius, static: 35 mm
UV-resistant: yes
Oil-resistant: yes
Color: orange
Sheathing material: without sheathing
Flame-propagating: no
Tensile strength: 100 N
Halogen-free: yes
Approval according to UR: yes
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: yes
Approval according to LUL/British Standard: yes
Approval according to Lloyds Register TA: yes
Approval according to UTAC: no
Approval according to DIN 5510: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 75 mm
With pull wire: no
Highly slippery Inner layer: no

Characteristics

Inner diameter16.5 mm
Bending radius, static35 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA12 AD21,2 16,5x21,2mm orange
Minimal order50 meters
ManufacturerFlexa
HAN10236209016
GTIN4025113275165
Outer diameter21.2 mm
Operating temperature-50 to +100 °C
ColorOrange
Halogen freeYes
Nominal diameter21.2 mm
Nominal size in inches1/2 inch
IP protection)IP68
UV-resistantYes
Flexa 10236209016 ROHRflex PA12 AD21,2 16,5x21,2mm orange solid plastic corrugated hose
Flexa 10236209016 ROHRflex PA12 AD21,2 16,5x21,2mm orange solid plastic corrugated hose
