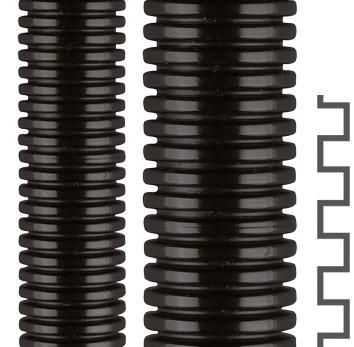

Flexa 10254202023 ROHRflex PA6-HT AD28.2 black solid plastic corrugated hose

In stock
SKU: 914339
€9.25
Into a basketIn the basketGo

Overview

Full plastic corrugated hose ROHRflex PA 6-HT, V2 (UL 94) rings, IP 68/IP 69K, for high temperatures, corrugated inside and outside, narrow profile Material: plastic (PA), color: black Temperature range: -25°C...+150°C ^ +170°C Approvals: tested EN/IEC 61386-23 Properties: air and liquid tight / oil resistant up to +80°C / petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / self-extinguishing / flame retardant / UV resistant Area of application: mechanical engineering / plant engineering / vehicle construction / electrical systems

Property Value
Lengthwise slit: no
Nominal size in inches: 3/4 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: yes
Nominal diameter: 28.5 mm
Inner diameter: 22.9 mm
Outer diameter: 28.4 mm
Compressive strength: 320 N
Operating temperature: -25 to +150 °C
Fire protection according to UL94: V2
Bending radius, static: 55 mm
UV-resistant: yes
Oil-resistant: yes
Color: black
Sheathing material: without sheathing
Flame-spreading: no
Tensile strength: 250 N
Halogen-free: yes
Approval according to UR: no
Approval according to VdTÜV/GGVSEB: yes
Approval according to CSA: no
Approval according to LUL/British Standard: yes
Approval according to Lloyds Register TA: no
Approval according to UTAC: no
Approval according to DIN 5510: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 100 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter22.9 mm
Bending radius, static55 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA6-HT AD28,2 black
Minimal order50 meters
ManufacturerFlexa
HAN10254202023
GTIN4025113220714
Outer diameter28.4 mm
Operating temperature-25 to +150 °C
ColorBlack
Halogen freeYes
Nominal diameter28.5 mm
Nominal size in inches3/4 inch
IP protection)IP68
UV-resistantYes
Flexa 10254202023 ROHRflex PA6-HT AD28.2 black solid plastic corrugated hose
Flexa 10254202023 ROHRflex PA6-HT AD28.2 black solid plastic corrugated hose
€9.25
Into a basketIn the basketGo
