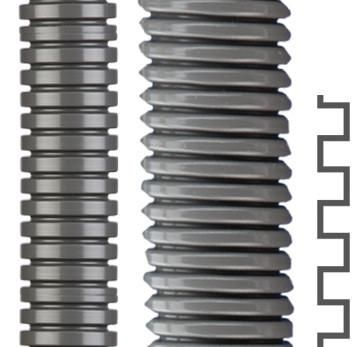

Flexa 10261202029 ROHRflex PA6L sw AD34,5 29,0x34,5mm solid plastic corrugated hose

In stock
SKU: 914413
€9.12
Into a basketIn the basketGo

Overview

Full plastic corrugated hose ROHRflex PA 6-L, HB (UL 94), rings, IP 68/IP 69K, economical, lower fire protection, corrugated inside and outside, narrow profile Material: plastic (PA), color: black (also available in gray and orange) Temperature range: -25°C...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 - CSA 22.2 UR-File-no E86359 / Lloyds Register / Gost Properties: air and liquid tight / oil resistant up to +100°C / petrol resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / self-extinguishing / flame retardant Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems

Property Value
Lengthwise slotted: no
Nominal size in inches: 1 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: yes
Approval according to NF F 16-101: no
Nominal diameter: 34.5 mm
Inner diameter: 29.0 mm
Outer diameter: 34.5 mm
Compressive strength: 750 N
Operating temperature: -25 to +120 °C
Fire protection according to UL94: HB
Bending radius, static: 65 mm
UV-resistant: yes
Oil-resistant: yes
Color: black
Sheathing material: without sheathing
Flame-propagating: no
Tensile strength: 250 N
Halogen-free: yes
Approval according to UR: yes
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: yes
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: yes
Approval according to UTAC: no
Approval according to DIN 5510: yes
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 120 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter29.0 mm
Bending radius, static65 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PA6L black AD34.5 29.0x34.5mm
Minimal order25 meters
ManufacturerFlexa
HAN10261202029
GTIN4025113214577
Outer diameter34.5 mm
Operating temperature-25 to +120 °C
ColorBlack
Halogen freeYes
Nominal diameter34.5 mm
Nominal size in inchesInch
IP protection)IP68
UV-resistantYes
Flexa 10261202029 ROHRflex PA6L sw AD34,5 29,0x34,5mm solid plastic corrugated hose
Flexa 10261202029 ROHRflex PA6L sw AD34,5 29,0x34,5mm solid plastic corrugated hose
