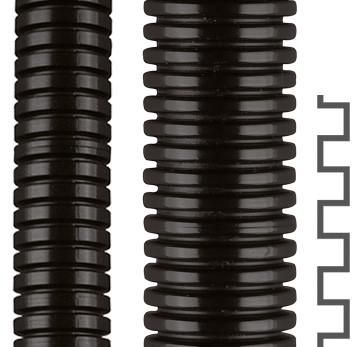

Flexa 10289932023 ROHRflex PU AD28,5 22,0x28,5mm black solid plastic corrugated hose

In stock
SKU: 912148
€8.36
Into a basketIn the basketGo

Overview

All-plastic corrugated hose ROHRflex PU, HB (UL 94), IP 68/IP 69K, for very flexible applications, corrugated inside and out, narrow profile Material: plastic (PU), color: black Temperature range: -40°C...+120°C ^ +150°C Properties: air and liquid-tight / oil, petrol and grease resistant / largely acid and solvent resistant / silicone, cadmium and halogen free / high toughness and abrasion resistance / very flexible / microbe resistant / UV resistant Area of application: mechanical engineering / plant engineering / vehicle construction (especially for engine installations) / shipbuilding / automation / electrical systems

Property Value
Lengthwise slit: no
Nominal size in inches: 3/4 inch
Lockable (two-part): no
Approval according to DIN EN 61386-23: no
Approval according to NF F 16-101: no
Nominal diameter: 28.5 mm
Inner diameter: 22.0 mm
Outer diameter: 28.5 mm
Operating temperature: -40 to +120 °C
Fire protection according to UL94: HB
Bending radius, static: 45 mm
UV-resistant: yes
Oil-resistant: yes
Color: black
Sheathing material: without sheathing
Flame-spreading: no
Halogen-free: yes
Approval according to UR: no
Approval according to VdTÜV/GGVSEB: no
Approval according to CSA: no
Approval according to LUL/British Standard: no
Approval according to Lloyds Register TA: no
Approval according to UTAC: no
Approval according to DIN 5510: no
Material: Polyurethane (PUR)
Protection class (IP): IP68
Bending behavior: flexible
Bending radius, dynamic: 100 mm
With pull wire: no
Highly slippery inner layer: no

Characteristics

Inner diameter22.0 mm
Bending radius, static45 mm
Bending behaviorFlexibel
Flame propagatingNo
HABROHRflex PU AD28,5 22,0x28,5mm black
Minimal order50 meters
ManufacturerFlexa
HAN10289932023
GTIN4025113195241
Outer diameter28.5 mm
Operating temperature-40 to +120 °C
ColorBlack
Halogen freeYes
Nominal diameter28.5 mm
Nominal size in inches3/4 inch
IP protection)IP68
UV-resistantYes
MaterialPolyurethane (PUR)
Flexa 10289932023 ROHRflex PU AD28,5 22,0x28,5mm black solid plastic corrugated hose
Flexa 10289932023 ROHRflex PU AD28,5 22,0x28,5mm black solid plastic corrugated hose
€8.36
Into a basketIn the basketGo
