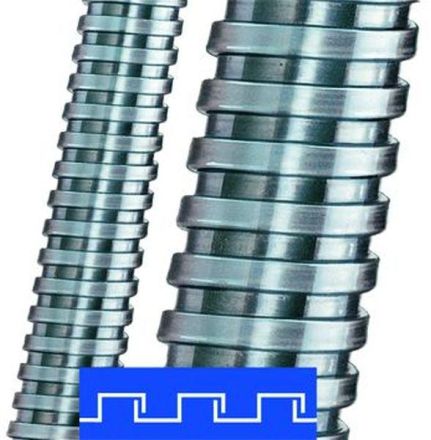

Flexa 11011801040 SPR-VA AD45 40x45mm stainless steel metal protection hose

In stock
SKU: 911832
€573.39
Into a basketIn the basketGo

Overview

Metal protection hose SPR-VA, IP 40, 10 meter pack, spiral wound, S-profile Material: stainless steel Temperature range: -200°C... +600°C Approvals: Gost Properties: highly flexible / tensile / transverse pressure resistant Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / sensor technology / EX area (EN 1127-1)

Property Value
Nominal diameter: 45.0 mm
Surface: untreated
Sheathing material 1st layer: without sheathing
Sheathing material 2nd layer (outer): without sheathing
Approval according to DIN EN 61386-23: no
Nominal size in inches: 1 1/4 inch
Inner diameter: 40.0 mm
Outer diameter: 45.0 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -200 to +600 °C
Tensile strength: 1000 N
Bending radius, static: 82 mm
Weight: 0.620 kg/m
Color: metallic
Hanging load: 450 N
Electrical properties: with conductive properties
Flame-spreading: no
Use in Ex areas: yes
Approval according to BWB: no
Approval according to VDE-EMV/emc: no
Approval according to FI: no
With approval according to UL: no
Approval according to CSA: no
Material: stainless steel
Protection class (IP): IP40
Bending behavior: flexible

Characteristics

Inner diameter40.0 mm
Use in Ex areaYes
Bending radius, static82 mm
Bending behaviorFlexibel
Flame propagatingNo
HABSPR-VA AD45 40x45mm stainless steel
ManufacturerFlexa
HAN11011801040
GTIN4025113267306
Outer diameter45.0 mm
Operating temperature-200 to +600 °C
Weight0.620 kg/m
Nominal diameter45.0 mm
Nominal size in inches1 1/4 inch
SurfaceUntreated
IP protection)IP40
MaterialStainless steel
Flexa 11011801040 SPR-VA AD45 40x45mm stainless steel metal protection hose
Flexa 11011801040 SPR-VA AD45 40x45mm stainless steel metal protection hose
€573.39
Into a basketIn the basketGo
