Flexa 11018801004 SPR-VA end position AD4x6mm stainless steel metal protection hose

In stock

SKU: 913621

Price on request

€10.76

€0

Overview

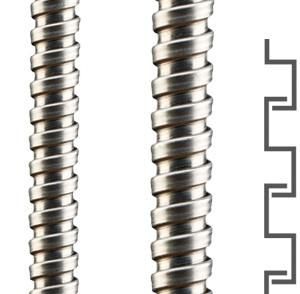

Metal protection hose SPR-VA, end position, rings, IP 40 spiral wound, S-profile Material: stainless steel Temperature range: -200°C... +600°C Approvals: Gost Properties: highly flexible / tensile / transverse pressure resistant Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / sensor technology / EX area (EN 1127-1)

Property	Value
Surface:	untreated
Sheathing material 1st layer:	without sheathing
Sheathing material 2nd layer (outer):	without sheathing
Approval according to DIN EN 61386-23:	no
Inner diameter:	4.0 mm
Outer diameter:	6.0 mm
Seal:	without seal
Operating temperature:	-200 to +600 °C
Bending radius, static:	12 mm
Weight:	0.049 kg/m
Color:	metallic
Electrical properties:	with conductive properties
Flame propagating:	no
Use in Ex areas:	yes
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
CSA approval:	no
Material:	stainless steel
Protection class (IP):	IP40
Bending behavior:	flexible
