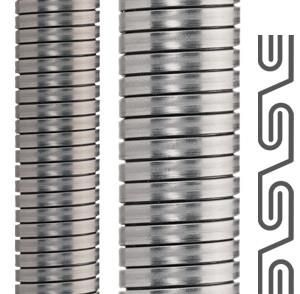

Flexa 11080101016 FLEXAgraff-AS AD16x19mm galvanized steel metal protection hose

In stock

SKU: 913630

Price on request

€8.98

€0

Overview

Metal protection hose FLEXAgraff-AS, rings, IP 40 spiral wound, double folded profile (Agraff) Material: galvanized steel Temperature range: -50°C ...+250°C Approvals: VDE-tested according to EN IEC 61386-23 / Gost Properties: very flexible / high tensile and torsional strength / no untwisting of the hose / high shielding factor Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / EX area (EN 1127-1)

Property	Value
Nominal diameter:	19.0 mm
Surface:	galvanized
Sheathing material 1st layer:	without sheathing
Sheathing material 2nd layer (outer):	without sheathing
Approval according to DIN EN 61386-23:	yes
Nominal size in inches:	other
Inner diameter:	16.0 mm
Outer diameter:	19.0 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	-50 to +250 °C
Tensile strength:	1000 N
Bending radius, static:	67 mm
Weight:	0.290 kg/m
Color:	metallic
Hanging load:	150 N
Electrical properties:	with conductive properties
Flame propagating:	no
Use in Ex areas:	yes
Approval according to BWB:	no
Approval according to VDE-EMV/emc:	no
Approval according to FI:	no
With approval according to UL:	no
Approval according to CSA:	no
Material:	Steel
Protection class (IP):	IP40
Bending behavior:	flexible
