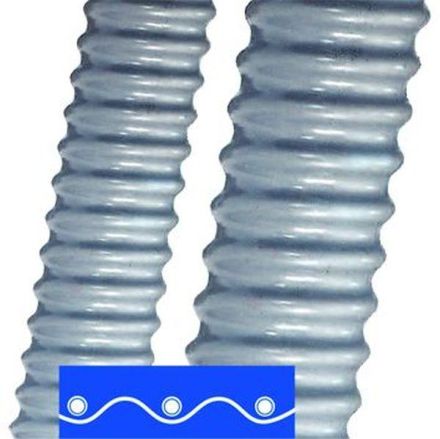

Flexa 12030101048 AIRflex-KUW-PVC-AS AD56 plastic hose

In stock
SKU: 911774
€34.16
Into a basketIn the basketGo

Overview

Plastic protection hose AIRflex-KUW-PVC-AS, rings, IP 68 spiral-wound plastic hose, plastic-coated spring steel wire spiral, soft PVC jacket Material: PVC, color: gray Temperature range: -25°C ... + 90°C ^ +100°C Approvals: VDE-tested according to EN/IEC 61386-23 / UL 1696, UR file E86359 Properties: highly flexible / stretchable and compressible / air and liquid-tight / largely acid and oil resistant / silicone and cadmium free / internal corrosion protection Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / automation / electrical systems / use in guide chains / suitable as a suction hose

Property Value
Nominal size in Inch: 1 1/2 inch
Approval according to CSA: no
Approval according to DIN EN 61386-23: yes
Nominal diameter: 56.0 mm
Inner diameter: 48.0 mm
Outer diameter: 56.0 mm
Material of the spiral: plastic-coated spring steel
Compressive strength: 1250 N
Operating temperature: -25 to +90 °C
Tensile strength: 500 N
Bending radius, static: 40 mm
UV-resistant: no
Halogen-free: yes
Smooth inside: no
Smooth outside: no
Flexibility: flexible
Color: gray
Approval according to UR: no
Approval according to N: no
Material: Polyvinyl chloride (PVC)
Protection class (IP): IP68
Sheathing material: other

Characteristics

Inner diameter48.0 mm
Bending radius, static40 mm
HABAIRflex-KUW-PVC-AS AD56
Minimal order25 meters
ManufacturerFlexa
HAN12030101048
GTIN4025113132727
Outer diameter56.0 mm
Operating temperature-25 to +90 °C
ColorGray
Halogen freeYes
Nominal diameter56.0 mm
Nominal size in inches1 1/2 inch
IP protection)IP68
UV-resistantNo
MaterialPolyvinyl chloride (PVC)
