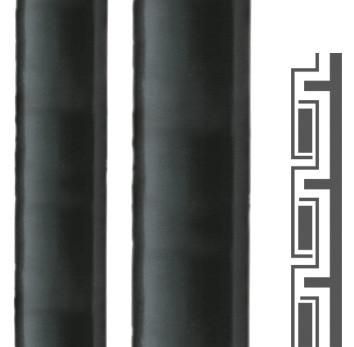

Flexa 12060112016 LIQUID-TIGHT-UL-CSA 1/2 16x21 black metal protection hose

In stock
SKU: 913665
€33.65
Into a basketIn the basketGo

Overview

Metal protection hose LIQUID-TIGHT-UL-CSA, IP 68 spiral wound, hooked profile, incorporated copper earth conductor, smooth, reinforced PVC jacket Material: galvanized steel, increased zinc coating / PVC, color: black Temperature range: -25°C ... 70°C, +100°C Approvals: UL approval Properties: particularly stable, flexible metal hose core / liquid-tight / silicone and cadmium-free / largely acid and oil resistant Area of application: mechanical engineering / plant engineering / vehicle construction / shipbuilding / automation / electrical systems / for international applications

Property Value
Surface: other
Sheathing material 1st layer: PVC, flame retardant
Sheathing material 2nd layer (outer): without sheath
Approval according to DIN EN 61386-23: no
Nominal size in inches: 1/2 inch
Inner diameter: 16.0 mm
Outer diameter: 21.0 mm
Seal: other
Compressive strength: 1250 N
Operating temperature: -25 to +70 °C
Tensile strength: 500 N
Bending radius, static: 175 mm
Weight: 0.570 kg/m
Color: black
Hanging load: 450 N
Electrical properties: with insulating properties
Flame-spreading: no
Use in Ex areas: no
Approval according to BWB: no
Approval according to VDE-EMV/emc: no
Approval according to FI: no
With approval according to UL: yes
Approval according to CSA: no
Material: steel
Protection class (IP): IP68
Bending behavior: flexible

Characteristics

Inner diameter16.0 mm
Use in Ex areaNo
Bending radius, static175 mm
Bending behaviorFlexibel
Flame propagatingNo
HABLIQUID-TIGHT-UL-CSA 1/2 16x21 black
Minimal order50 meters
ManufacturerFlexa
HAN12060112016
GTIN4025113134073
Outer diameter21.0 mm
Operating temperature-25 to +70 °C
ColorBlack
Weight0.570 kg/m
Nominal size in inches1/2 inch
SurfaceOther
IP protection)IP68
MaterialSteel
