Flexa 12130101029 FLEXAgraff-PU-AS AD36 29x36mm met.blue metal protection hose

In stock
SKU: 911821
€49.15
Into a basketIn the basketGo

Overview

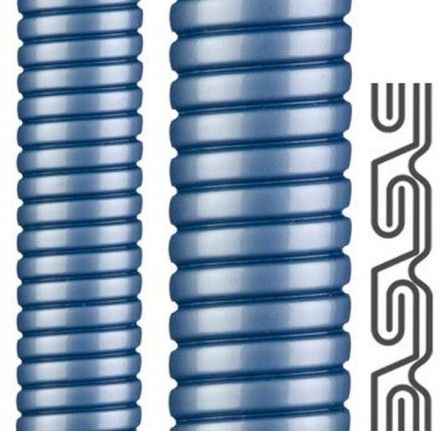

Metal protection hose FLEXAgraff-PU-AS, rings, IP 68, V2 (UL94) spiral wound, double folded profile (Agraff), oil-resistant PU jacket Material: galvanized steel / polyurethane (PU), color: metallic blue Temperature range: -50°C ... +100°C ^ +130°C Approvals: VDE-tested DIN EN IEC 61386-23 / Gost Properties: very flexible / high tensile and torsional strength / oil, petrol and grease resistant / halogen, silicone and cadmium free / no untwisting of the hose / microbe resistant / flame retardant Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems

Property Value
Nominal diameter: 36.0 mm
Surface: galvanized
Sheathing material 1st layer: polyurethane (PUR)
Sheathing material 2nd layer (outer): without sheath
Approval according to DIN EN 61386-23: yes
Nominal size in inches: 1 inch
Inner diameter: 29.0 mm
Outer diameter: 36.0 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -50 to +100 °C
Tensile strength: 1000 N
Bending radius, static: 125 mm
Weight: 0.685 kg/m
Color: blue
Hanging load: 450 N
Electrical properties: with insulation properties
Flame propagating: no
Use in Ex areas: no
Approval according to BWB: no
Approval according to VDE-EMV/emc: no
Approval according to FI: no
With approval according to UL: no
CSA approval: no
Material: steel
Protection class (IP): IP68
Bending behavior: flexible

Characteristics

Inner diameter29.0 mm
Use in Ex areaNo
Bending radius, static125 mm
Bending behaviorFlexibel
Flame propagatingNo
HABFLEXAgraff-PU-AS AD36 29x36mm met.blue
Minimal order25 meters
ManufacturerFlexa
HAN12130101029
GTIN4025113136145
Outer diameter36.0 mm
Operating temperature-50 to +100 °C
ColorBlue
Weight0.685 kg/m
Nominal diameter36.0 mm
Nominal size in inchesInch
SurfaceGalvanized
IP protection)IP68
MaterialSteel
Flexa 12130101029 FLEXAgraff-PU-AS AD36 29x36mm met.blue metal protection hose
