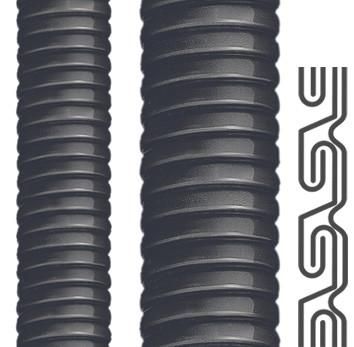

Metal protection hose FLEXAgraff-PU-F, rings, IP 68, V0 (UL94) spiral wound, double folded profile (Agraff), flame-retardant PU jacket Material: galvanized steel / polyurethane (PU), color: black Temperature range: -50°C ... +100°C ^ +130°C Approvals: VDE-tested according to EN IEC 61386-23 / EN 45545-2 (HL 3) / Gost Properties: flexible / flame-retardant / self-extinguishing / weatherproof / largely acid-, seawater- and oil-resistant / halogen-, silicone- and cadmium-free / can withstand transverse pressure Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles (heavy mechanical stress) / shipbuilding / automation / electrical systems
| Property | Value |
| Nominal diameter: | 56.0 mm |
| Surface: | galvanized |
| Sheathing material 1st layer: | Polyurethane (PUR) |
| Sheathing material 2nd layer (outer): | without sheath |
| Approval according to DIN EN 61386-23: | yes |
| Nominal size in inches: | 1 1/2 inch |
| Inner diameter: | 49.0 mm |
| Outer diameter: | 56.0 mm |
| Seal: | without seal |
| Compressive strength: | 1250 N |
| Operating temperature: | -50 to +100 °C |
| Tensile strength: | 1000 N |
| Bending radius, static: | 240 mm |
| Weight: | 1,200 kg/m |
| Color: | black |
| Hanging load: | 450 N |
| Electrical properties: | with insulating properties |
| Flame propagating: | no |
| Use in Ex areas: | no |
| Approval according to BWB: | no |
| Approval according to VDE-EMV/emc: | no |
| Approval according to FI: | no |
| With approval according to UL: | no |
| CSA approval: | no |
| Material: | steel |
| Protection class (IP): | IP68 |
| Bending behavior: | flexible |
