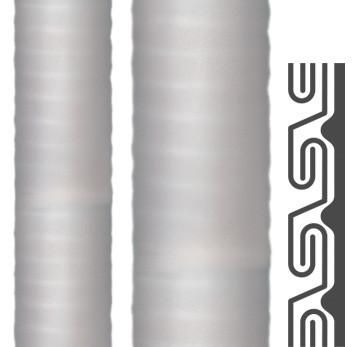

Flexa 12140801010 FLEXAgraff-SI-ASF AD14 10x14mm grey metal protection hose

In stock
SKU: 913694
€41.64
Into a basketIn the basketGo

Overview

Metal protection hose FLEXAgraff-SI-ASF, rings, IP 68 spiral wound, double folded profile (Agraff), SI jacket, non-flame propagating Material: galvanized steel / silicone (SI), color: gray Temperature range: -50°C ... +180°C Approvals: VDE-tested according to EN IEC 61386-23 / Gost Properties: very flexible / flame retardant / high temperature resistant / high shielding factor / good electrical insulation / halogen-free / no twisting of the hose / high tensile and torsional strength / high shielding factor Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / power plants

Property Value
Nominal diameter: 14.0 mm
Surface: galvanized
Coating material 1st layer: silicone
Coating material 2nd layer (outer): without coating
Approval according to DIN EN 61386-23: yes
Nominal size in inches: 5/16 inch
Inner diameter: 10.0 mm
Outer diameter: 14.0 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -50 to +180 °C
Tensile strength: 1000 N
Bending radius, static: 50 mm
Weight: 0.180 kg/m
Color: gray
Hanging load: 150 N
Electrical properties: with insulating properties
Flame propagating: no
Use in Ex areas: no
Approval according to BWB: no
Approval according to VDE-EMV/emc: no
Approval according to FI: no
With approval according to UL: no
Approval according to CSA: no
Material: steel
Protection class (IP): IP68
Bending behavior: flexible

Characteristics

Inner diameter10.0 mm
Use in Ex areaNo
Bending radius, static50 mm
Bending behaviorFlexibel
Flame propagatingNo
HABFLEXAgraff-SI-ASF AD14 10x14mm grey
Minimal order50 meters
ManufacturerFlexa
HAN12140801010
GTIN4025113136350
Outer diameter14.0 mm
Operating temperature-50 to +180 °C
ColorGray
Weight0.180 kg/m
Nominal diameter14.0 mm
Nominal size in inches5/16 inch
SurfaceGalvanized
IP protection)IP68
MaterialSteel
