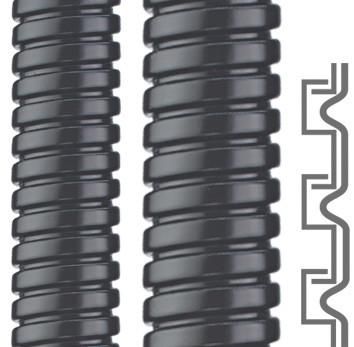

Flexa 12213702013 SPR-PU-F AD17 13x17mm black metal protection hose

In stock
SKU: 913710
€9.32
Into a basketIn the basketGo

Overview

Metal protection hose SPR-PU-F, rings, IP 68, V0 (UL 94) spiral-wound metal hose, S-profile, flame-retardant PU jacket Material: galvanized steel / polyurethane (PU), color: black Temperature range: -50°C ... +100°C ^ +130°C Approvals: VDE-tested according to EN IEC 61386-1 / EN 45545-2 (HL 3) / Gost Properties: flexible / flame-retardant / self-extinguishing / weatherproof / halogen-, silicone- and cadmium-free / microbe-resistant / largely seawater, acid- and oil-resistant / can withstand transverse pressure Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems

Property Value
Nominal diameter: 17.0 mm
Surface: galvanized
Sheathing material 1st layer: Polyurethane (PUR)
Sheathing material 2nd layer (outer): without sheath
Approval according to DIN EN 61386-23: yes
Nominal size in inches: 3/8 inch
Inner diameter: 13.0 mm
Outer diameter: 17.0 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -50 to +100 °C
Tensile strength: 1000 N
Bending radius, static: 45 mm
Weight: 0.150 kg/m
Color: black
Hanging load: 500 N
Electrical properties: with insulating properties
Flame propagating: no
Use in Ex areas: no
Approval according to BWB: no
Approval according to VDE-EMV/emc: no
Approval according to FI: no
With approval according to UL: no
CSA approval: no
Material: steel
Protection class (IP): IP68
Bending behavior: flexible

Characteristics

Inner diameter13.0 mm
Use in Ex areaNo
Bending radius, static45 mm
Bending behaviorFlexibel
Flame propagatingNo
HABSPR-PU-F AD17 13x17mm black
Minimal order50 meters
ManufacturerFlexa
HAN12213702013
GTIN4025113265975
Outer diameter17.0 mm
Operating temperature-50 to +100 °C
ColorBlack
Weight0.150 kg/m
Nominal diameter17.0 mm
Nominal size in inches3/8 inch
SurfaceGalvanized
IP protection)IP68
MaterialSteel
Flexa 12213702013 SPR-PU-F AD17 13x17mm black metal protection hose
