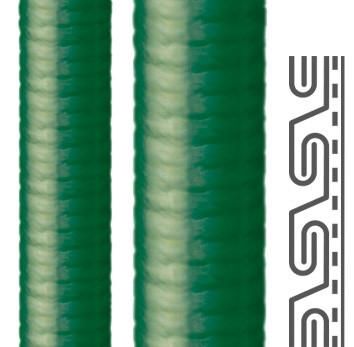

Flexa 12540707038 FLEXAgraff-CU-PU-AS AD45 38x46mm metal protection hose

In stock
SKU: 913721
€202.89
Into a basketIn the basketGo

Overview

Metal protection hose FLEXAgraff-CU-PU, rings, IP 68, V2 (UL94) spiral wound, double folded profile (Agraff), copper wire braiding, PU jacket Material: galvanized steel / tinned copper / polyurethane (PU), color: green Temperature range: -50°C ... +100°C ^ +130°C Approvals: VDE-tested according to EN IEC 61386-23 / EMC-tested EN 50289-1-6 / Gost Properties: liquid-tight / high tensile and torsional strength / oil, petrol and grease resistant / halogen, silicone and cadmium-free / microbe-resistant / flame-retardant / good EMC shielding properties Area of application: mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / electrical systems / EMC applications

Property Value
Nominal diameter: 45.0 mm
Surface: galvanized
Sheathing material 1st layer: copper, tinned
Sheathing material 2nd layer (outer): polyurethane (PUR)
Approval according to DIN EN 61386-23: yes
Nominal size in inches: 1 1/4 inch
Inner diameter: 38.0 mm
Outer diameter: 46.0 mm
Seal: without seal
Compressive strength: 1250 N
Operating temperature: -50 to +100 °C
Tensile strength: 1000 N
Bending radius, static: 150 mm
Weight: 1,250 kg/m
Color: green
Hanging load: 450 N
Electrical properties: with insulating properties
Flame propagating: no
Use in Ex areas: no
Approval according to BWB: no
Approval according to VDE-EMV/emc: no
Approval according to FI: no
UL approved: no
CSA approved: no
Material: steel
Protection class (IP): IP68
Bending behavior: flexible

Characteristics

Inner diameter38.0 mm
Use in Ex areaNo
Bending radius, static150 mm
Bending behaviorFlexibel
Flame propagatingNo
HABFLEXAgraff-CU-PU-AS AD45 38x46mm
Minimal order25 meters
ManufacturerFlexa
HAN12540707038
GTIN4025113181800
Outer diameter46.0 mm
Operating temperature-50 to +100 °C
ColorGreen
Weight1,250 kg/m
Nominal diameter45.0 mm
Nominal size in inches1 1/4 inch
SurfaceGalvanized
IP protection)IP68
MaterialSteel
