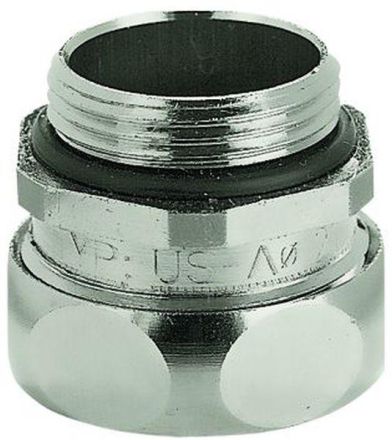

Metal safety screw connection straight US-M, IP 65 suitable for metal protection hoses SPR-PA / SPR-PU-AS / SPR-PU-F / SPR-PVC-AS / FLEXAgraff-PU-AS / FLEXAgraff-PU-F metric external thread, including inner sleeve, sealing ring and O-ring, housing with hexagon wrench surface Material: nickel-plated brass Temperature range: -40°C ... +125°C Properties: high dust and liquid protection / force-locking connection of hose and screw connection / perfect earthing / covering of the hose ends / vibration and tensile strength
| Property | Value |
| Protection class (IP) depending on hose: | 65 |
| Nominal diameter: | 56.0 mm |
| Largest outer diameter of the hose: | 56.0 mm |
| Smallest inner diameter of the hose: | 49.0 mm |
| Thread connection size: | M50 x 1.5 |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| Total length: | 49.0 mm |
| Total height: | 70.0 mm |
| Thread length: | 15.5 mm |
| Rotatable thread: | no |
| Nominal size in inches: | 1 1/2 inch |
| Design: | straight |
| Construction: | External thread |
| One-piece: | no |
| Approved in combination with protective hose UL: | no |
| Approved in combination with protective hose CSA: | no |
| Approved in combination with protective hose FI: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -40 to +125 °C |
| Thread number: | 1.5 |
| Thread type: | metric |
| Type of connection of the screw connection to the housing: | thread |
| Number of entries: | 1 |
| With earth connection: | no |
