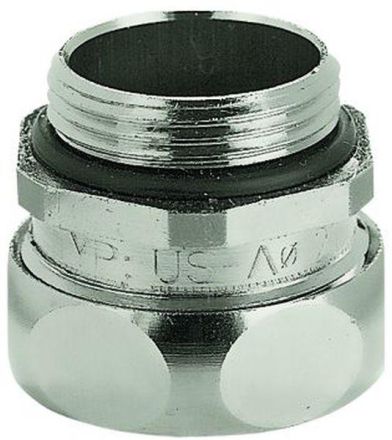

Flexa 15010337032 US-M AD36 M32x1,5 nickel-plated brass metal safety screw connection

Flexa 15010337032 US-M AD36 M32x1,5 nickel-plated brass metal safety screw connection

In stock

SKU: 912062

Price on request

€33.56

€0

Overview

Metal safety screw connection straight US-M, IP 66 suitable for metal protection hose FLEXAgraff-SI-ASF metric external thread, including inner nozzle, sealing ring and O-ring, housing with hexagon wrench surface Material: nickel-plated brass Temperature range: -40°C ... +125°C Properties: high dust and liquid protection / force-locking connection of hose and screw connection / perfect grounding / covering of the hose ends / vibration and tensile strength

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	36.0 mm
Largest outside diameter of the hose:	36.0 mm
Smallest inner diameter of the hose:	27.0 mm
Thread connection size:	M32 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	yes
Total length:	43.0 mm
Total height:	48.0 mm
Thread length:	14.0 mm
Rotatable thread:	no
Nominal size in inches:	1 inch
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-40 to +125 °C
Thread number:	1.5
Thread type:	metric
Type of connection of the screw connection to the housing:	thread
Number of entries:	1
With earth connection:	no
