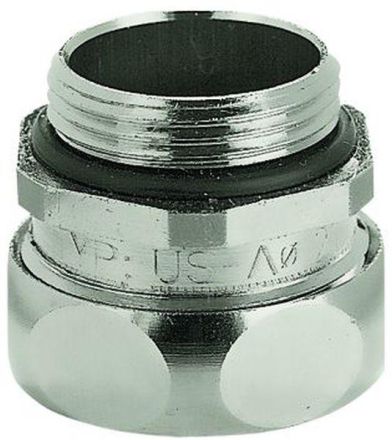

Flexa 15011328016 US-M AD17 M16x1,5 nickel-plated brass metal safety screw connection

Flexa 15011328016 US-M AD17 M16x1,5 nickel-plated brass metal safety screw connection

In stock

SKU: 912053

Price on request

€15.61

€0

Overview

Metal safety screw connection straight US-M, IP 40 suitable for metal protection hoses SPR-CU-AS / SPR-EDU-AS / FLEXAgraff-CU-AS / FLEXAhightemp metric external thread, including inner nozzle, brass pressure ring (EMC) and O-ring, housing with hexagon wrench surface Material: nickel-plated brass Temperature range: -40°C ...+250°C Properties: high dust and liquid protection / force-locking connection of hose and screw connection / perfect earthing / covering of the hose ends / vibration and tensile strength

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	17.0 mm
Largest outer diameter of the hose:	17.0 mm
Smallest inner diameter of the hose:	13.0 mm
Thread connection size:	M16 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	yes
Total length:	33.0 mm
Total height:	27.0 mm
Thread length:	10.0 mm
Rotatable thread:	no
Nominal size in inches:	3/8 inch
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-40 to 250 °C
Thread number:	1.5
Thread type:	metric
Type of connection of the screw connection to the housing:	thread
Number of entries:	1
With earth connection:	no
