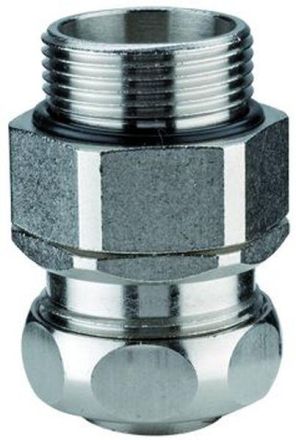

Flexa 15013327050 USDR-M AD45 M50x1,5 nickel-plated brass metal safety screw connection

Flexa 15013327050 USDR-M AD45 M50x1,5 nickel-plated brass metal safety screw connection

In stock

SKU: 912046

Price on request

€101.43

€0

Overview

Metal safety screw connection straight USDR-M, IP 40 suitable for metal protection hoses SPR-AS / SPR-VA / FLEXAgraff-AS / FLEXAgraff-VA metric internal thread, including inner sleeve, sealing ring and O-ring, housing with hexagon wrench flat, rotatable Material: nickel-plated brass Temperature range: -40°C ... +125°C Properties: high protection against dust and liquids / force-locking connection between hose and screw connection / perfect earthing / covering of the hose ends / vibration and tensile strength

Property	Value
Protection class (IP) depending on hose:	40 to 55
Nominal diameter:	45.0 mm
Largest outer diameter of the hose:	45.0 mm
Smallest inner diameter of the hose:	40.0 mm
Thread connection size:	M50 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	yes
Total length:	50.0 mm
Total height:	57.0 mm
Thread length:	14.0 mm
Rotatable thread:	yes
Nominal size in inches:	1 1/4 inch
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-40 to +125 °C
Thread number:	1.5
Thread type:	metric
Type of connection of the screw connection to the housing:	thread
Number of entries:	1
With earth connection:	no
