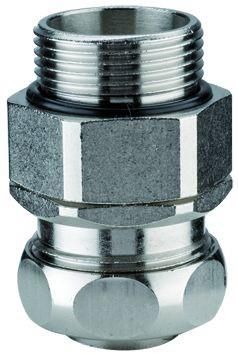

Flexa 15013339032 USDR-M AD27 M32x1,5 nickel-plated brass metal safety screw connection

Flexa 15013339032 USDR-M AD27 M32x1,5 nickel-plated brass metal safety screw connection

In stock

SKU: 913914

Price on request

€40.38

€0

Overview

Metal safety screw connection straight USDR-M, IP 40 suitable for metal protection hoses FLEXAgraff-AS / FLEXAgraff-VA metric internal thread, including inner sleeve, sealing ring and O-ring, housing with hexagon wrench flat, rotatable Material: nickel-plated brass Temperature range: -40°C ... +125°C Properties: high dust and liquid protection / force-locking connection of hose and screw connection / perfect earthing / covering of the hose ends / vibration and tensile strength

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	27.0 mm
Largest outside diameter of Hose:	27.0 mm
Smallest inner diameter of the hose:	24.0 mm
Thread connection size:	M32 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	yes
Total length:	38.0 mm
Total height:	39.0 mm
Thread length:	13.0 mm
Rotatable thread:	yes
Nominal size in inches:	3/4 inch
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-40 to +125 °C
Thread number:	1.5
Thread type:	metric
Type of connection of the screw connection to the housing:	thread
Number of entries:	1
With earth connection:	no
