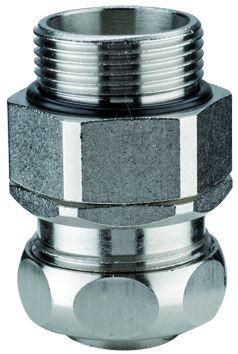

Flexa 15014328050 USDR-M AD45 M50x1,5 nickel-plated brass metal safety screw connection

Flexa 15014328050 USDR-M AD45 M50x1,5 nickel-plated brass metal safety screw connection

In stock

SKU: 913920

Price on request

€130.23

€0

Overview

Metal safety screw connection straight USDR-M, IP 40 suitable for metal protection hoses SPR-CU-AS / SPR-EDU-AS / FLEXAgraff-CU-AS metric internal thread, including inner nozzle, brass pressure ring (EMC) and O-ring, housing with hexagon wrench flat, rotatable Material: nickel-plated brass Temperature range: -40°C ... +250°C Properties: high dust and liquid protection / force-locking connection of hose/screw connection / perfect grounding / vibration and tensile strength

Property	Value
Protection class (IP) depending on hose:	40
Nominal diameter:	45.0 mm
Largest outer diameter of the hose:	45.0 mm
Smallest inner diameter of the hose:	38.0 mm
Thread connection size:	M50 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	yes
Total length:	50.0 mm
Total height:	57.0 mm
Thread length:	14.0 mm
Rotatable thread:	yes
Nominal size in inches:	1 1/4 inch
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-40 to 250 °C
Thread number:	1.5
Thread type:	metric
Type of connection of the screw connection to the housing:	thread
Number of entries:	1
With earth connection:	no
