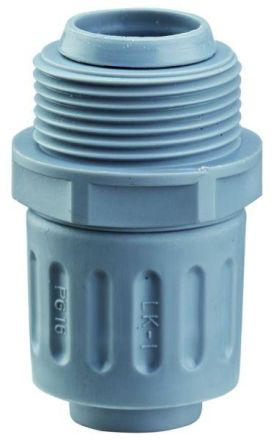

Flexa 15020014016 LKI-M16 plastic screw connection

In stock

SKU: 911635

Price on request

€4.80

€0

Overview

Plastic screw connection straight LKI-M, IP 54 suitable for plastic protective hoses AIRflex-KUW-PVC-AS / AIRflex-KUW-PU-AS, AIRflex-K / AIRflex-GRS one-piece, integrated inner sleeve, metric external thread, rotatable Material: impact-resistant plastic (PP), color: gray, also available in black Temperature range: -10°C ... +110°C Approvals: UL 1696-UR file E86359 / CSA 22.2, file 227.3-05 Properties: efficient hose assembly / one-piece screw connection body / hose unscrewing protection / hose end cover / vibration and tensile strength

Property	Value
Nominal size in inches:	5/16 inch
Max. in combination with protective hose DIN EN 61386-23:	no
With integrated holder:	no
Thread connection size:	M16 x 1.5
Material of the screw connection:	Polypropylene (PP)
Nominal diameter:	14.0 mm
Design:	straight
Rotatable thread:	yes
Design:	External thread
Connection type:	Thread
Thread length:	10.0 mm
One-piece:	yes
Seal material:	without seal
Smallest inner diameter of the hose:	10.0 mm
Largest outer diameter of the hose:	14.0 mm
Total height:	21.0 mm
Color:	gray
Approved in combination with protective hose UR:	yes
Total length:	39.5 mm
Protection class (IP):	IP54
