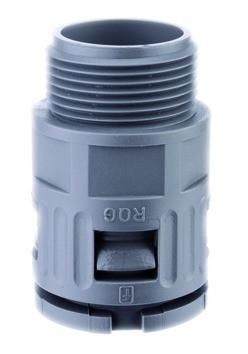

Flexa 15020027005 RQG-P AD10,0 PG13,5 grey screw connection

In stock
SKU: 914203
€4.82
Into a basketIn the basketGo

Overview

Plastic quick screw connection straight RQG-P, IP 68 / IP 69K one-piece, high-sealing, PG external thread, for ROHRflex corrugated hoses Material: plastic (PA), seal TPE, color: gray (also available in black) Temperature range: -40°C ...+120°C Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / EN 45545-2 (HL 2) / NFPA 130 - ASTM E 162-E 662 SMP 800-C / GGVS / Lloyds Register of Shipping / Gost, Properties: resistant to oil and petrol / silicone-, cadmium- and halogen-free / acid and solvent-resistant

Property Value
Thread size: PG13.5
Nominal size in inches: 1/4 inch
Perm. in combination with protective hose according to DIN EN 61386-23: yes
Design: straight
Rotatable thread: no
Design: external thread
Connection type: thread
Thread type: other
Thread material: polyamide (PA)
Thread length: 10.0 mm
Length: 32.5 mm
Height: 23.0 mm
Seal material: Thermoplastic elastomers (TPE)
Min. inner Ø of hose: 6.5 mm
Max. outer Ø of hose: 10.0 mm
Color: grey
Approved in combination with CSA protective hose: yes
Approved in combination with protective hose UR: yes
Approved in combination with protective hose VdTÜV/GGVSEB: yes
Approved in combination with protective hose Lloyds Register: yes
Nominal diameter: 10.0 mm
Protection class (IP): IP68
Material: Polyamide (PA)
Operating temperature: -40 to 120 °C

Characteristics

Approved in combination with protective hose URYes
Approved in combination with protective hose CSAYes
HABRQG-P AD10,0 PG13,5 grey
Minimal order25 pcs
ManufacturerFlexa
HAN15020027005
GTIN4025113147349
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-40 to 120 °C
ColorGray
Thread typeOther
Height23.0 mm
Length32.5 mm
Nominal diameter10.0 mm
Nominal size in inches1/4 inch
IP protection)IP68
Connection typeThread
MaterialPolyamide (PA)
